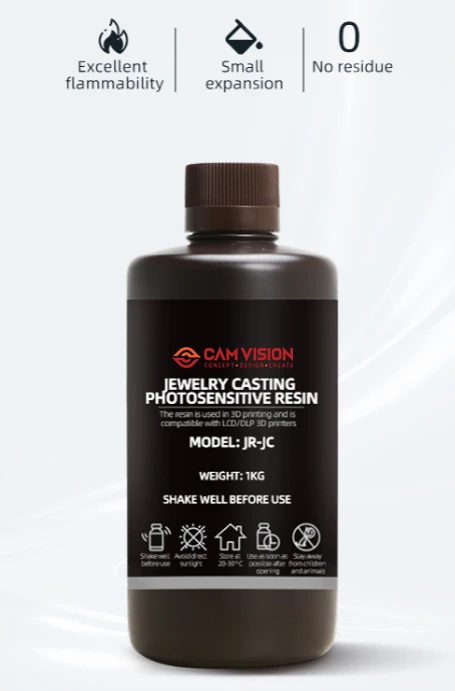

CAM VISION Resin
WAX CONTENT 30 - 40%
8 core highlights
High precision
Good liquidity
Combustion without residue
Low shrinkage
High temperature resistance
Suitable for a variety of metals
Finished product has a smooth surface
Excellent flammability
Wide range of applications
Be applied for jewelry, education, research, toy design, handicraft design, industrial parts, etc.
Excellent combustion performance Small expansion and less residue
Has fine surface quality, exquisite detail features
Design of the depositing mixture standard vacuum investment casting methods are used
casting in bronze, copper,tin or iron you can use it to cast gold, platinum,silver, and many other metals
Simple operation and good compatibility
Designed for 405nm wavelength compatible with most LCD/DLP printers
Easier to market Easier to sell
Digital Jewelry Process

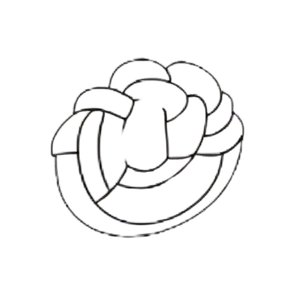

3D Printing model
Processing model

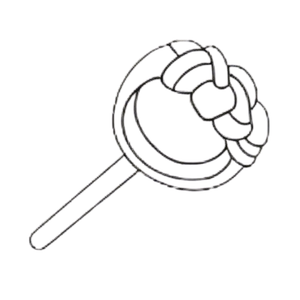

Plant wax tree

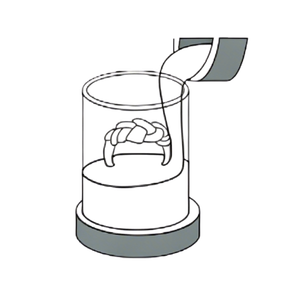

Gypsum injection

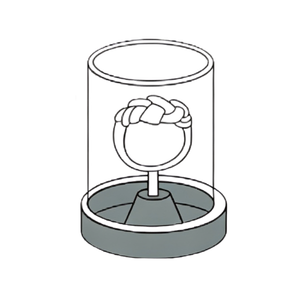

Vacuuming
High temperature dewaxing
Casting

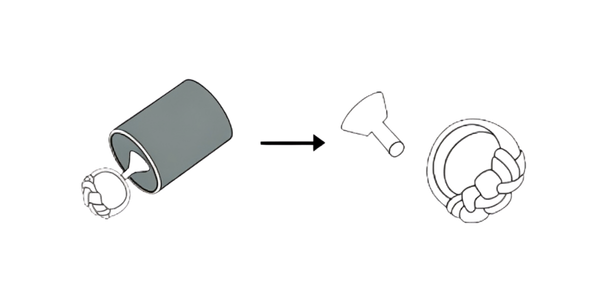

Take out polishing
Simple operation and good compatibility
Designed for 405nm wavelength compatible with most LCD/DLP printers
Easier to market Easier to sell

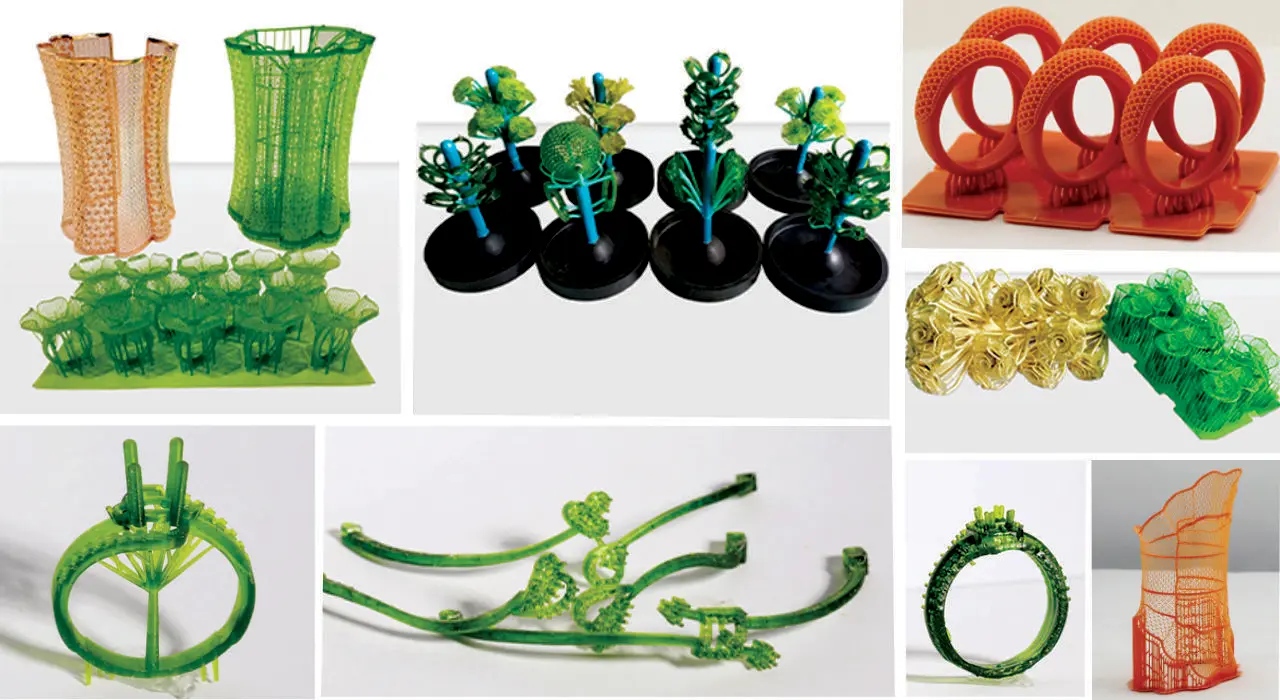

Model display
Instructions for use of materials
Post-processing and cleaning |Safety precautions |Correct storage
Post-processing and cleaning
1.Clean the model with absolute ethanol or isopropanol with an ultrasonic shaker, do not shake the model with high frequency or brush tghe model vigorously to avoid damage to the surface details of the model;
2.Remove the surface cleaning liquid with an air gun or hair dryer:
3.Remove mostof the support before post-curing, and remove and modify the surface treatment of detailed support after post-curing;
4.Adjust the corresponding post-curing time according to the selected post-curing.
Safety precautions
1.Please shake evenly before use, seal in time after use, and store in the dark
2.Please wear protective gear such as gloves and masks when using
3.Wash hands thoroughly after operation
4.Contact with the skin may cause allergies, such as irritation or rash, please seek medical attention in time
5.If it accidentally gets into your eyes, wash off immediately with plenty of water and seek medical attention
6.Do not allow pregnant women and children to reach this product
7.Please dispose of this product container at an approved waste treatment plant
Correct storage method
Please store the product in a cool place below 25 C to avoid exposure to the sun, generally visible light may cause resin polymerization gelatinization. Can not be placed in the sun, humid, corrosive gas place
Product parameters
| Maximum force(KGF) | 88.6±10% |
| Tensile strength (MPA) | 20.88±10% |
| Deformation of maximumforce point (MM) | 18.73±10% |
| Yield point elongation (%) | 47.34±10% |
| Elongation at break (%) | 32.96±10% |
| Maximum Flexural Strength (MPA) | 13.75±10% |
| Flexural Moduls of Elasticity (MPA) | 333.68±10% |
| Hardness (Shore D) | 58~68 |
| Impact strength, notched Izod, J/M | 117.72±10% |
| Tensile modulus (MPA) | 152.82±10% |
